Clearing Advanced Key [Advanced Keyless Entry And Start System]
- Fully lower the driver-side door glass.

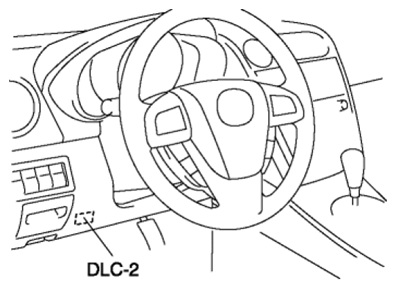

- Connect the M-MDS to the DLC-2.
- Pull out the M-MDS cable from the door glass opening and set the M-MDS outside the vehicle.
CAUTION:
- Protect the cable and body contact area with a clean rag, otherwise they could be damaged.
- After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
- Select "Body".
- Select "Security".
- Select "PATS Functions".
- When using the PDS (Pocket PC)
- Select "All Tests and Calibrations".
- Select "PATS Functions".
- Then, select items from the screen menu in the following order.
- Select "Advanced Key Code Erase and Program"
- The security access begins and the M-MDS displays "OUT-CODE".
NOTE:
- When "OUT-CODE" is first displayed, turning the ignition switch from the LOCK to the ON position 5 times will change the "OUT-CODE".
- Input the "IN-CODE" that corresponds to the "OUT-CODE" displayed on the M-MDS screen.
- Perform procedures according to the directions on the M-MDS screen.
- If the advanced key needs to be reprogrammed, program it according to the instructions on the M-MDS screen.
