Steering Location Index
Steering Location Index
MZR 2.5

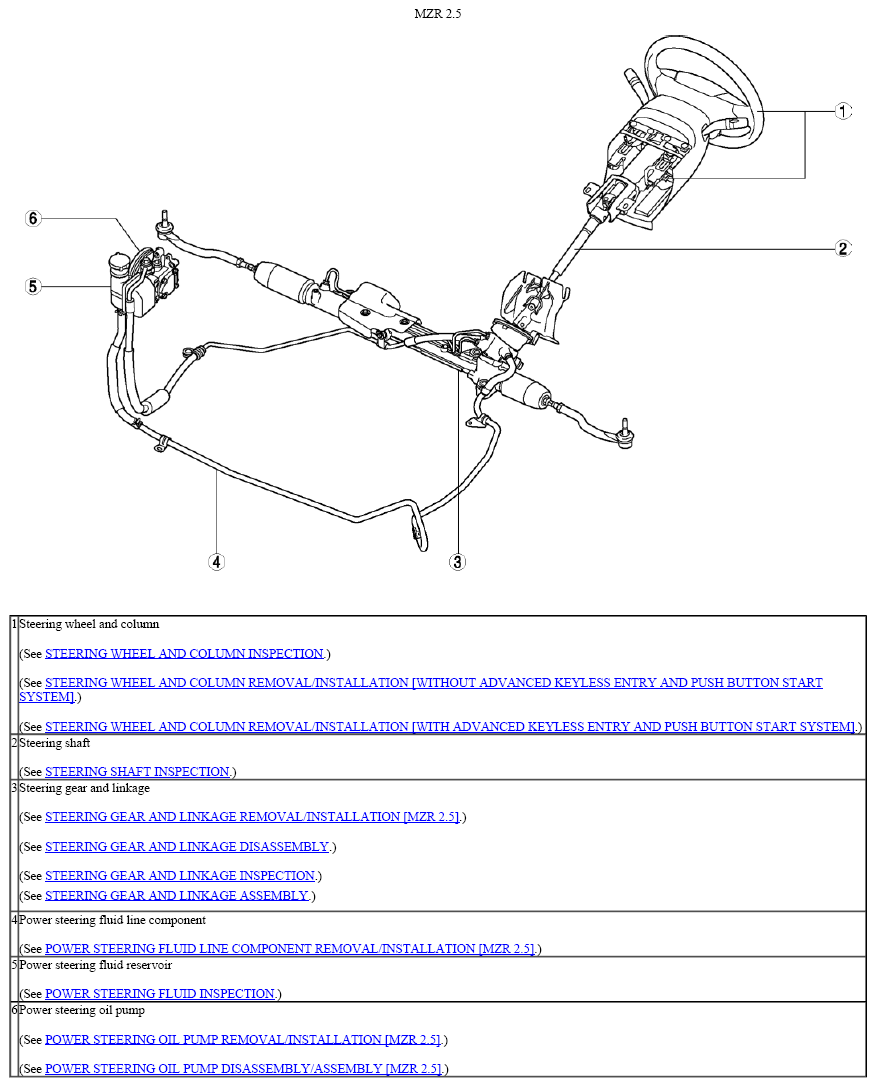

Fig 1: Identifying Steering Components Location (MZR 2.5)
MZI 3.7 V6

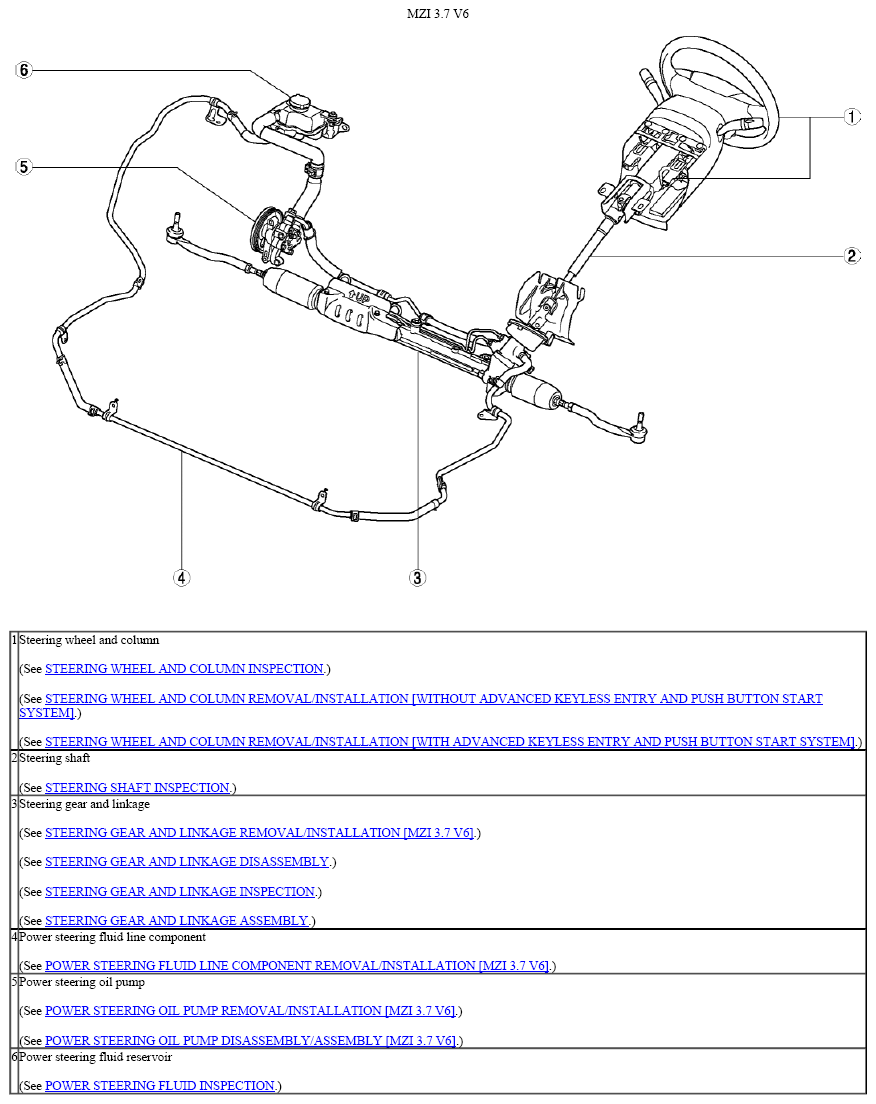

Fig 2: Identifying Steering Components Location (MZI 3.7 V6)
