Steering Gear And Linkage Disassembly: Notes

CAUTION:

To prevent damage to the steering gear when securing it in a vice, always secure it using aluminum plates and clean rags.

Disassemble in the order indicated in the figure.

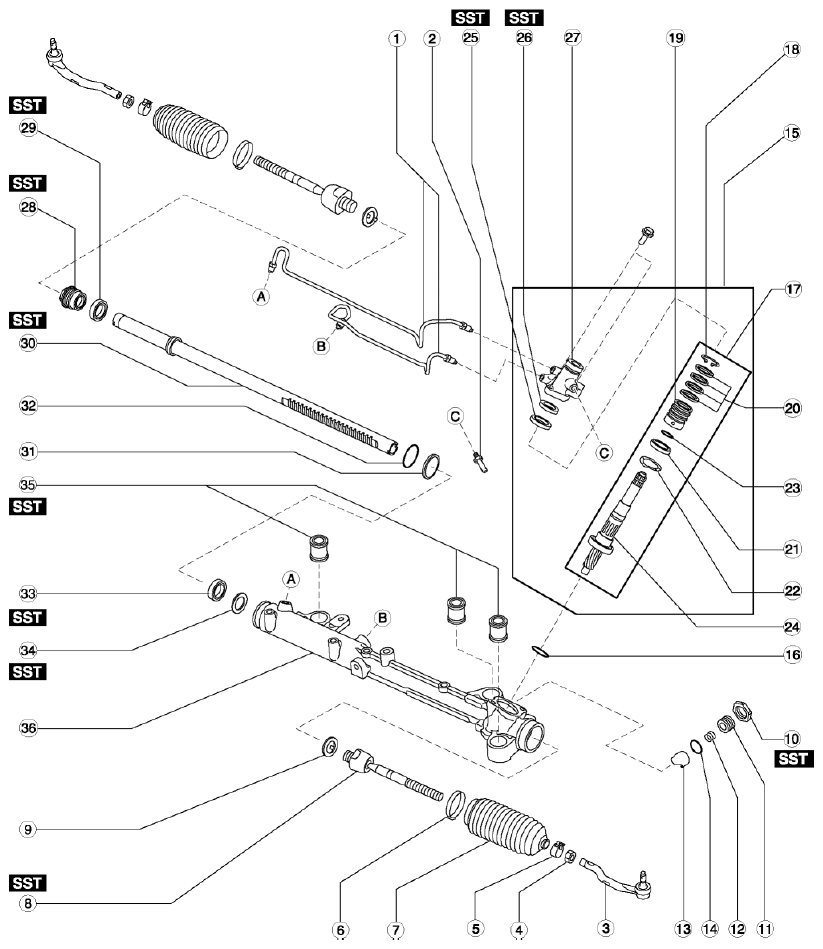

Fig 1: View Of Steering Gear And Linkage Components (1 Of 2)

Fig 2: View Of Steering Gear And Linkage Components (2 Of 2)
