Mounting Rubber Assembly Note

Apply soapy water to the rubber part of the mounting rubber.
Temporarily install the gear housing so that the mounting rubber is positioned as shown in the figure.

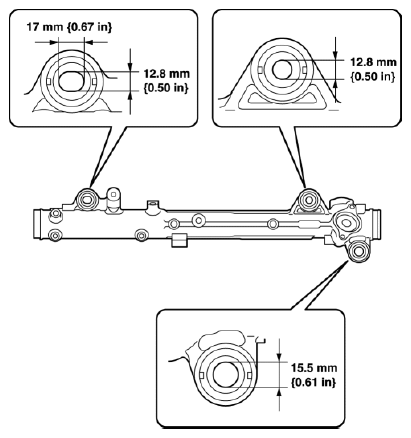

Fig 1: Identifying Gear Housing Mounting Rubber Dimension
CAUTION:
- If the mounting rubber is assembled in the incorrect position and direction, it could result in a mis-installation when it is installed to the vehicle. When assembling the mounting rubber, assemble while verifying the position and direction.
Press fit the ear portion of the mounting rubber (lower side) using the SSTs until it projects from the gear housing as shown in the figure.

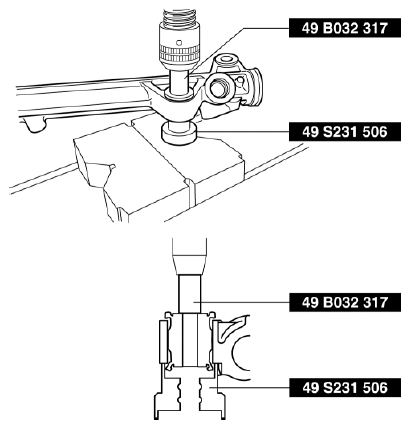

Fig 2: Pressing Ear Portion Of Mounting Rubber (Lower Side) Using SSTs
NOTE:
- Press fit the ear portion of the mounting rubber (upper side) until it partially enters the gear housing.
Substitution SST
- 49 B032 317
  Outer diameter: 20-24.5 mm {0.79-0.96 in}

  Height: 40 mm {1.6 in} or more
- 49 V001 525
  Inner diameter: 34 mm {1.3 in} or more

  Outer diameter: 36-39 mm {1.42-1.53 in}

  Plate thickness: 1 mm {0.04 in} or more

  Height: 40 mm {1.6 in} or more
Reverse the gear housing as shown in the figure, and set the gear housing and the SSTs into the press.

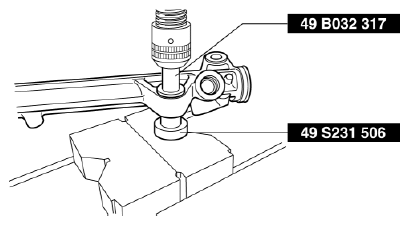

Fig 3: Pressing Reverse Gear Housing

Substitution SST
- 49 B032 317
  Outer diameter: 20-24.5 mm {0.79-0.96 in}

  Height: 40 mm {1.6 in} or more
- 49 S231 506
  Inner diameter: 34 mm {1.3 in} or more

  Outer diameter: 36-38 mm {1.42-1.49 in}

  Plate thickness: 1-2 mm {0.04-0.07 in} or more

  Height: 20 mm {0.79 in} or more
Press fit the mounting rubber using the SSTs and the press until the mounting rubber ear portion (upper side) contacts the gear housing.

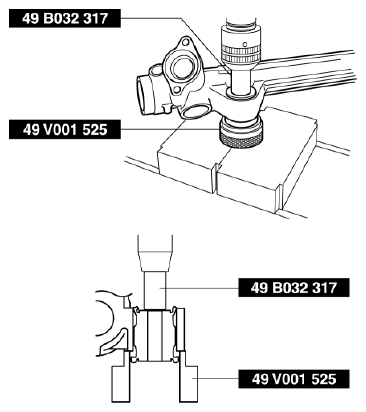

Fig 4: Pressing Mounting Rubber Using SSTs
Verify that both mounting rubber ears are correctly assembled with no gaps between them and the gear housing as shown in the figure.

Fig 5: Identifying Mounting Rubber And Gear Housing
- If there are gaps, readjust their positions using the SSTs and the press.
