Meter Hood Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

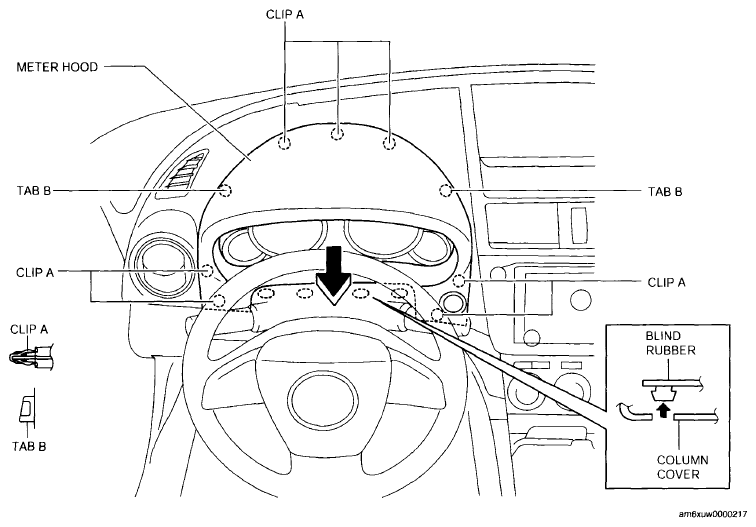

- Pull the meter hood in the direction of the arrow shown in the figure and remove it while detaching the clips A, tab B and blind rubber.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
