DTC U3004:16 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE

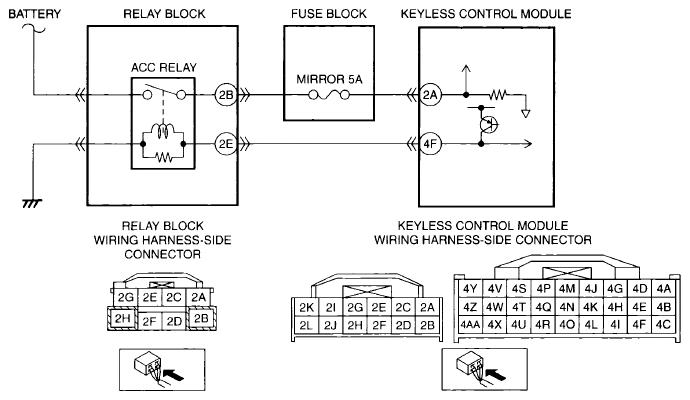

| DETECTION CONDITION | ACC monitor input circuit voltage less than threshold (2.2-6.5 V ) is detected for 1 s , while ACC relay output circuit is active |
| POSSIBLE CAUSE |
|
