DTC P1708:29 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

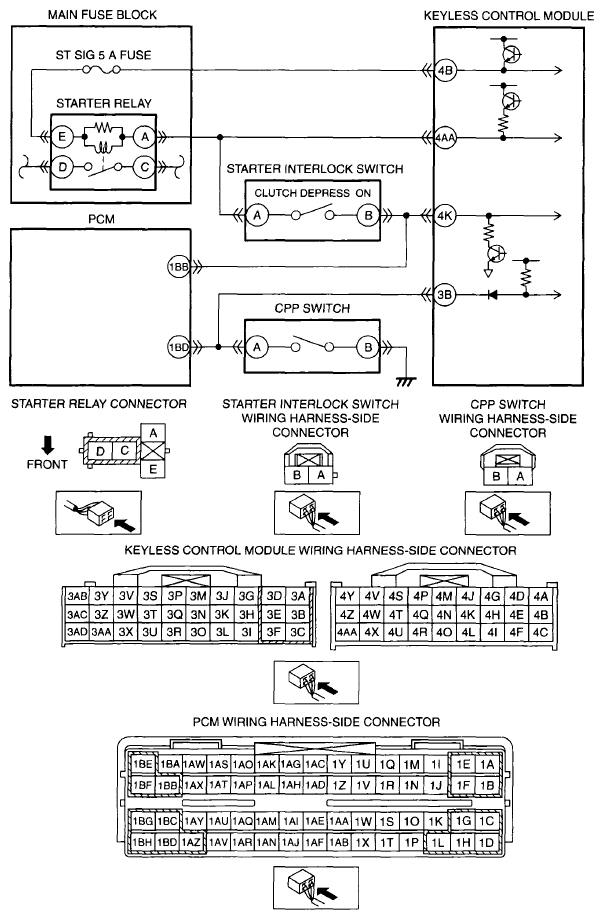

DETECTION CONDITION AND POSSIBLE CAUSE
| DETECTION CONDITION |
- Detect the mismatch between clutch switch and starter interlock switch.
- Clutch monitor input circuit voltage higher than 4.3 V
under the following conditions:
- IG1 relay output circuit is not active
- Clutch is depressed
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Open circuit in related wiring harness
- CPP switch malfunction
- Starter interlock switch malfunction
- Short to ground in related wiring harness
- PCM malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
