DTC P0830:23 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DETECTION CONDITION |
Clutch pedal position (CPP) switch signal is detected for 600 s |
| POSSIBLE CAUSE |
- Connector or terminal malfunction

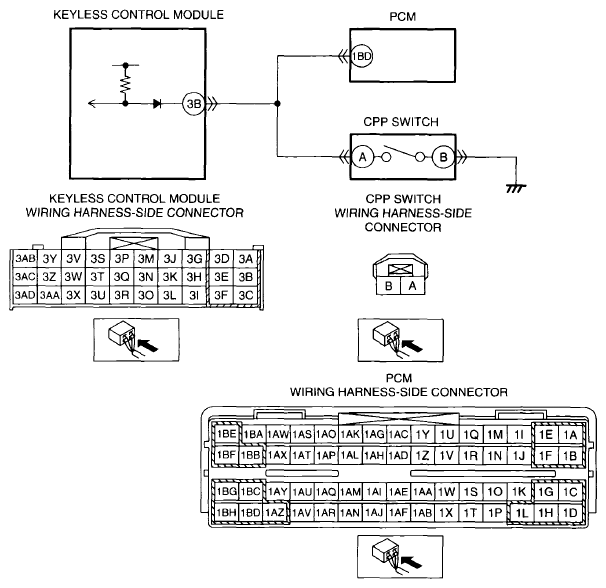

- Short to ground in the wiring harness between clutch pedal position (CPP) switch terminal A and keyless control module terminal 3B
- Short to ground in the wiring harness between PCM terminal 1 BD and keyless control module terminal 3B
- Clutch pedal position (CPP) switch malfunction
- PCM malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
