DTC P081D:62 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DETECTION CONDITION |
- Neutral switch is detected as continuously ON in spite of vehicle speed increasing from 0 km/h {0 mph}
to 10 km/h {6.2 mph}
- CAN and neutral switch signals do not correspond
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction

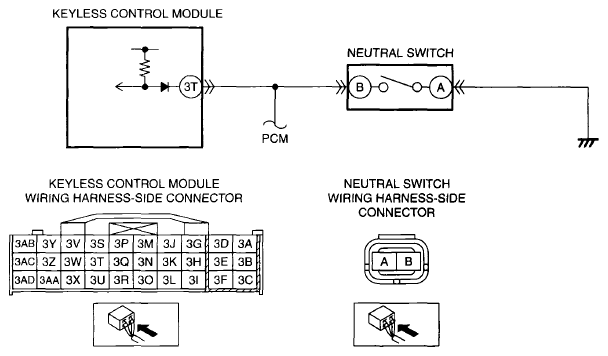

- Open circuit in the wiring harness between neutral switch terminal A and body ground
- Short to ground in the wiring harness between neutral switch terminal B and keyless control module terminal 3T
- Neutral switch malfunction
- Open circuit in the wiring harness between neutral switch terminal B and keyless control module terminal 3T
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
