DTC P081C:62 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DETECTION CONDITION |
CAN and P range switch signals do not correspond, while ignition switch is ON |
| POSSIBLE CAUSE |
- Connector or terminal malfunction

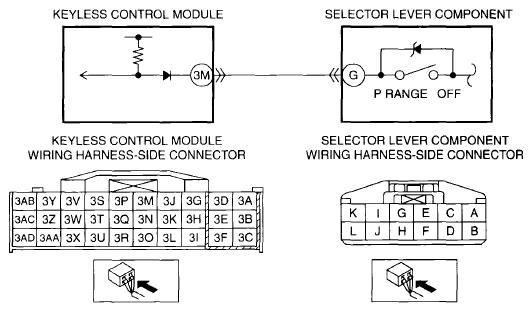

- Short to ground in the wiring harness between selector lever component terminal G and keyless control module terminal 3M
- Short to power supply in the wiring harness between selector lever component terminal G and keyless control module terminal 3M
- Selector lever component malfunction
- Open circuit in the wiring harness between selector lever component terminal G and keyless control module terminal 3M
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
