DTC P0615:13 [Advanced Keyless Entry And Push Button Start System]: MZI-3.7
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

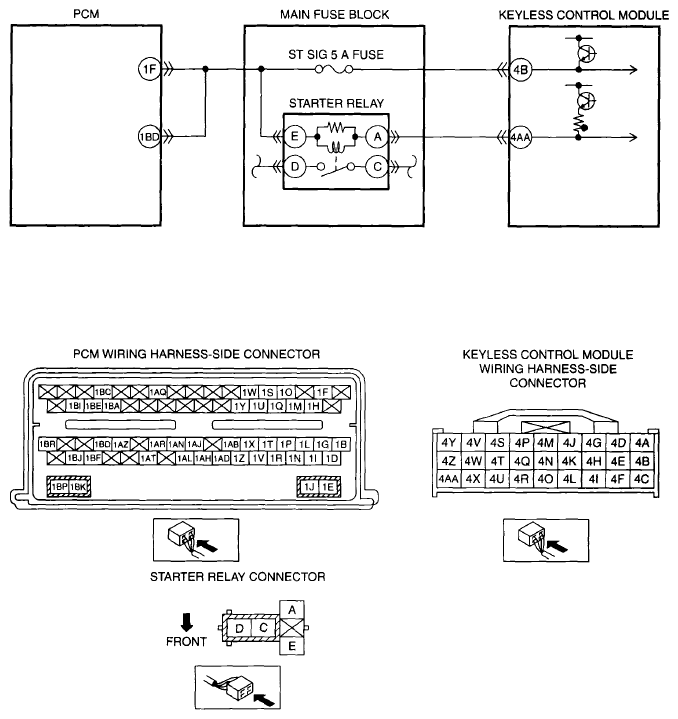

DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
- Open circuit in starter circuit
|
| DETECTION CONDITION |
- Detect the mismatch voltage between starter relay and starter monitor
- Feedback voltage of starter relay output circuit less than 1.1 V
and starter monitor input circuit higher than 1.1 V
is detected under the following conditions-
- IG1 relay output circuit is not active
- Shift lever in P range
|
| POSSIBLE CAUSE |
- ST SIG 5 A fuse malfunction
- Starter relay malfunction
- Connector or terminal malfunction
- Open circuit in related wiring harness
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
