DTC P0615:12 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |

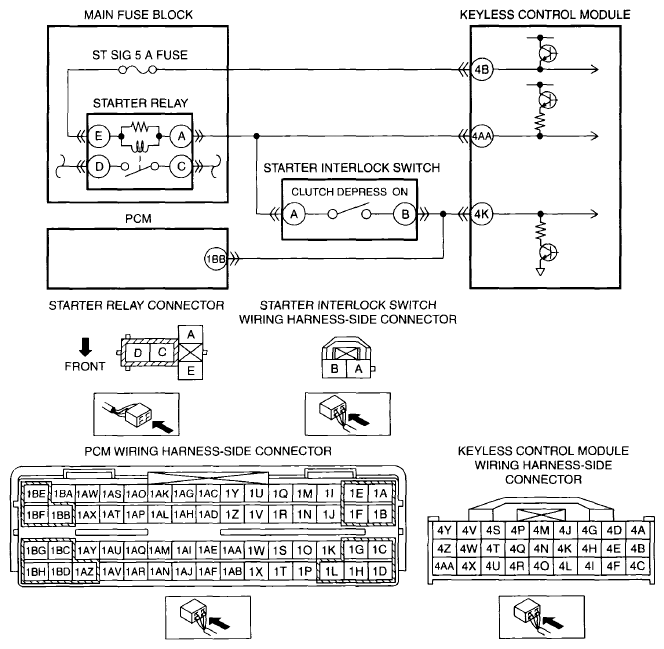

- Short to power supply in starter circuit
|
| DETECTION CONDITION |
- Detect that the voltage of starter relay is higher than the specification.
- Feedback voltage of starter relay output circuit higher than 6 V
is detected under the following conditions
- IG1 relay output circuit is not active
- Clutch is depressed
|
| POSSIBLE CAUSE |
- Starter relay malfunction
- Connector or terminal malfunction
- Short to power supply in related wiring harness
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
