DTC C0040:29 [Advanced Keyless Entry And Push Button Start System]: L5
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

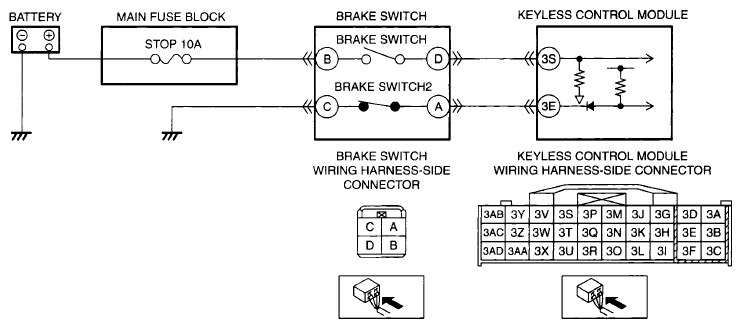

DETECTION CONDITION AND POSSIBLE CAUSE
| DETECTION CONDITION |
Brake switch and brake switch 2 link malfunction |
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Short to ground in wiring harness between brake switch terminal A and keyless control module terminal 3E
- Short to ground in wiring harness between brake switch terminal B and battery positive terminal
- Short to power supply in wiring harness between brake switch terminal D and keyless control module terminal 3S
- Open circuit in wiring harness between brake switch terminal A and keyless control module terminal 3E
- Open circuit in wiring harness between brake switch terminal B and battery positive terminal
- Open circuit in wiring harness between brake switch terminal C and body ground
- Open circuit in wiring harness between brake switch terminal D and keyless control module terminal 3S
- Brake switch malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
