Vehicles With DSC
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DETECTION CONDITION |
ABS driver circuit voltage less than threshold (2.2-6.5 V
) is detected under the following conditions.
- Ignition switch is off
- ABS driver circuit is active
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Combined sensor malfunction

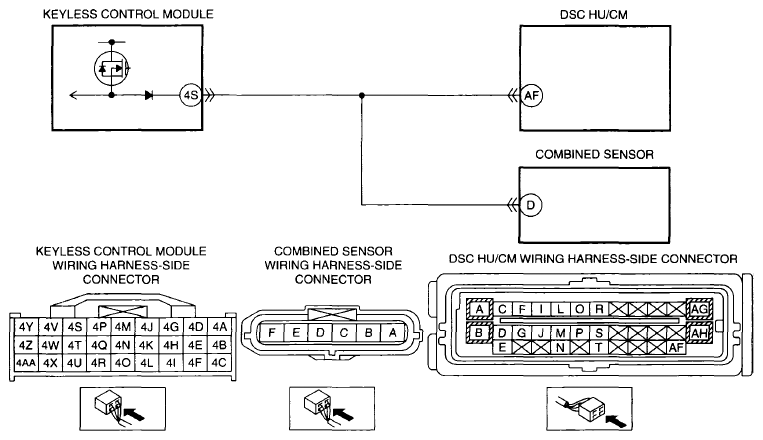

- Short to ground in wiring harness between DSC HU/CM terminal AF and keyless control module terminal 4S
- Short to ground in wiring harness between combined sensor terminal D and keyless control module terminal 4S
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
