DTC B10C9:1F [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DETECTION CONDITION |
Cannot receive signal correctly from keyless antenna (interior, front) |
| POSSIBLE CAUSE |
- Connector or terminal malfunction

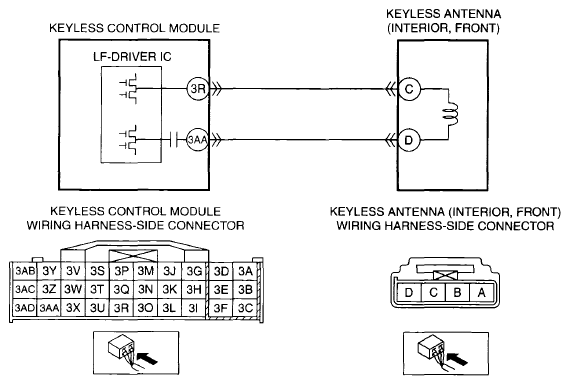

- Short to ground in the wiring harness between keyless antenna (interior, front) terminal C and keyless control module terminal 3R
- Short to ground in the wiring harness between keyless antenna (interior, front) terminal D and keyless control module terminal 3AA
- Short to power supply in the wiring harness between keyless antenna (interior, front) terminal C and keyless control module terminal 3R
- Short to power supply in the wiring harness between keyless antenna (interior, front) terminal D and keyless control module terminal 3AA
- Open circuit in the wiring harness between keyless antenna (interior, front) terminal C and keyless control module terminal 3R
- Open circuit in the wiring harness between keyless antenna (interior, front) terminal D and keyless control module terminal 3AA
- Keyless antenna (interior, front) malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
