DTC B10A5:12 [Advanced Keyless Entry And Push Button Start System]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION AND POSSIBLE CAUSE

DETECTION CONDITION	Keyless beeper circuit voltage higher than threshold (2.2-6.5 V ), while the circuit is not active

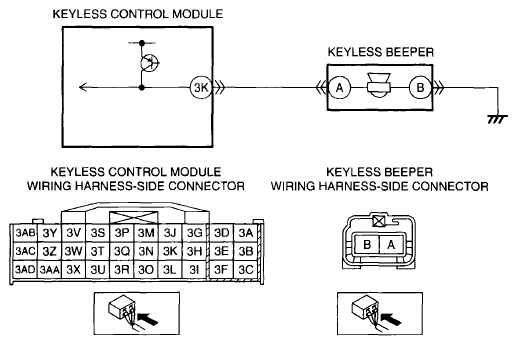

POSSIBLE CAUSE	Connector or terminal malfunction Short to power supply in wiring harness between keyless beeper terminal A and keyless control module terminal 3K Keyless beeper malfunction Keyless control module malfunction
Courtesy of MAZDA MOTORS CORP.
