DTC B108B:23 [Advanced Keyless Entry And Push Button Start System]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION AND POSSIBLE CAUSE

DETECTION CONDITION	120 s have elapsed since push button start 1 signal was detected

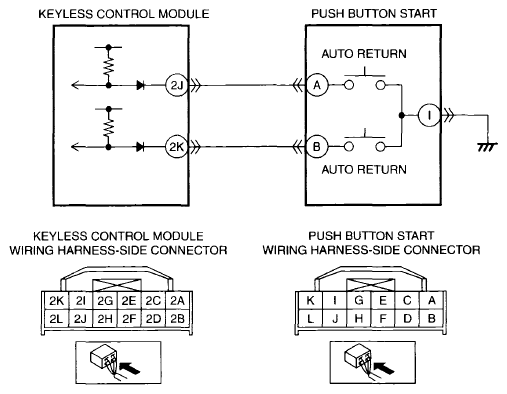

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in wiring harness between push button start terminal A and keyless control module terminal 2J Push button start malfunction Keyless control module malfunction
Courtesy of MAZDA MOTORS CORP.
