DTC B1026:71 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DETECTION CONDITION |
Unable to lock steering column |
| POSSIBLE CAUSE |
- Connector or terminal malfunction

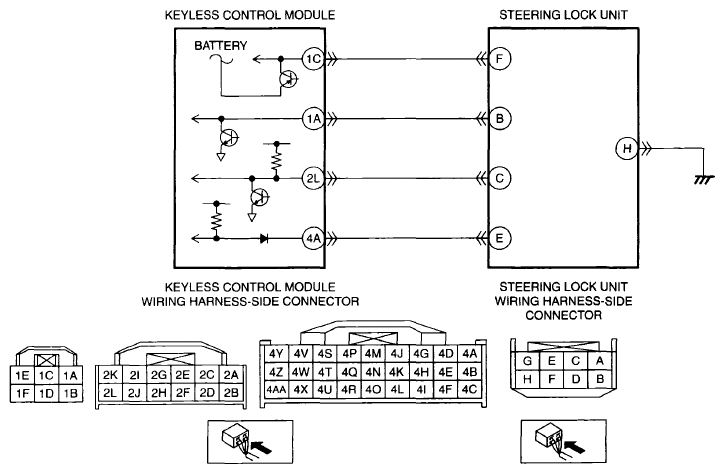

- Short to ground in wiring harness between steering lock unit terminal F and keyless control module terminal 1C
- Short to power supply in wiring harness between steering lock unit terminal B and keyless control module terminal 1A
- Open circuit in wiring harness between steering lock unit terminal F and keyless control module terminal 1C
- Open circuit in wiring harness between steering lock unit terminal B and keyless control module terminal 1A
- Steering lock unit malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
