Trunk Lid Latch Switch Inspection

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the recess. (See RECESS REMOVAL/INSTALLATION .)
  3. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  4. Remove the trunk lid latch and lock actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION .)
  5. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

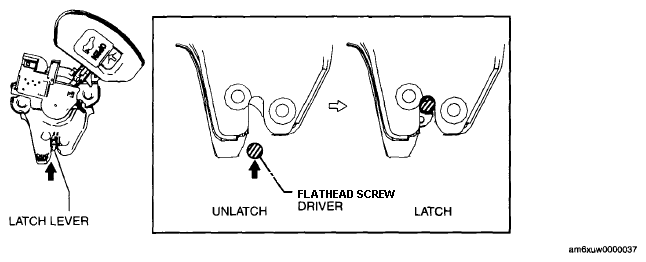

    Fig 1: Inspecting Trunk Lid Latch Lever Condition
    G06200938Courtesy of MAZDA MOTORS CORP.
  6. Verify that the continuity is as indicated in the table
    • If not as indicated in the table, replace the trunk lid latch and lock actuator.
    Fig 2: Trunk Lid Latch Switch Continuity Table
    G06200939Courtesy of MAZDA MOTORS CORP.
    Fig 3: Identifying Trunk Lid Latch Switch Connector And Circuit
    G06200940Courtesy of MAZDA MOTORS CORP.
