Front Inner Handle

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the door lock switch connector.
    Fig 1: Identifying Door Lock Switch Connector
    G06200872Courtesy of MAZDA MOTORS CORP.
  5. Disconnect each cable and remove the front inner handle.

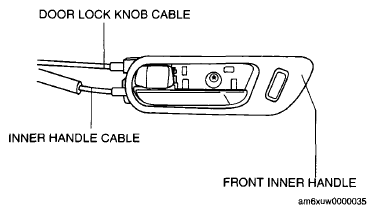

    6. Fig 2: Identifying Front Inner Handle & Cables
    G06200873Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
