Grommet Removal Note
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

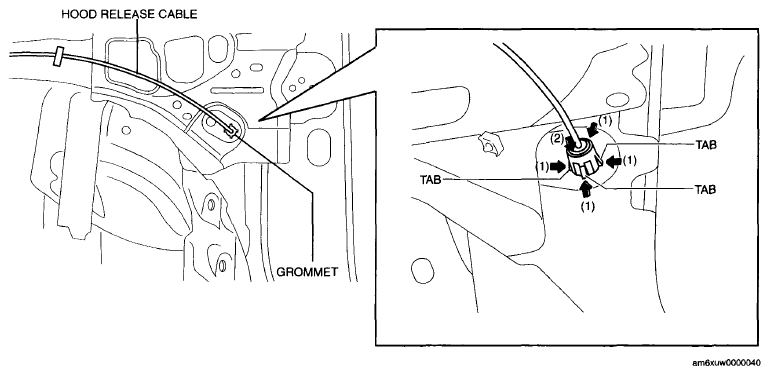

- Remove the grommet in the direction of the arrow (2) shown in the figure while pressing the grommet tabs in the direction of the arrow (1).
Courtesy of MAZDA MOTORS CORP.
