Door Lock Switch Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the inner handle. (See INNER HANDLE REMOVAL/INSTALLATION .)
  5. Remove the screws, then remove the door lock switch.
  6. Install in the reverse order of removal.

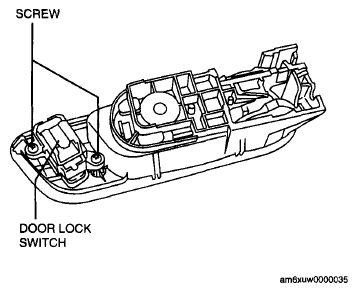

Fig 1: Identifying Door Lock Switch & Screws
G06200877Courtesy of MAZDA MOTORS CORP.
