Clearance inspection

Remove the rear ABS wheel-speed sensor.
Measure the distance between the rear ABS wheel-speed sensor installation surface and the rear ABS sensor rotor. This is dimension A.

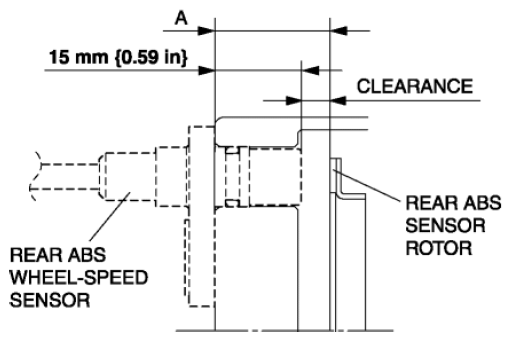

Fig 1: Measuring Distance Between Rear ABS Wheel-Speed Sensor Installation Surface And Rear ABS Sensor Rotor
Calculate the clearance between the rear ABS wheel-speed sensor and the ABS sensor rotor using the following formula:
- Clearance (mm {in}) = A-15 mm {0.59 in}
Verify that the clearance between the ABS sensor rotor and the rear ABS wheel-speed sensor is as indicated below.
- If there is any malfunction, verify the installation condition and replace if necessary.
  Clearance
- 0.3-1.1 mm {0.02-0.04 in}
