Column Cover Removal/Installation

  1. Pull down the steering wheel.
  2. Remove the blind rubber. (See METER HOOD REMOVAL/INSTALLATION .)
  3. Pull the upper column cover in the direction of the arrow in the order of (1) and (2), then remove the upper column cover while detaching the tabs and pin.

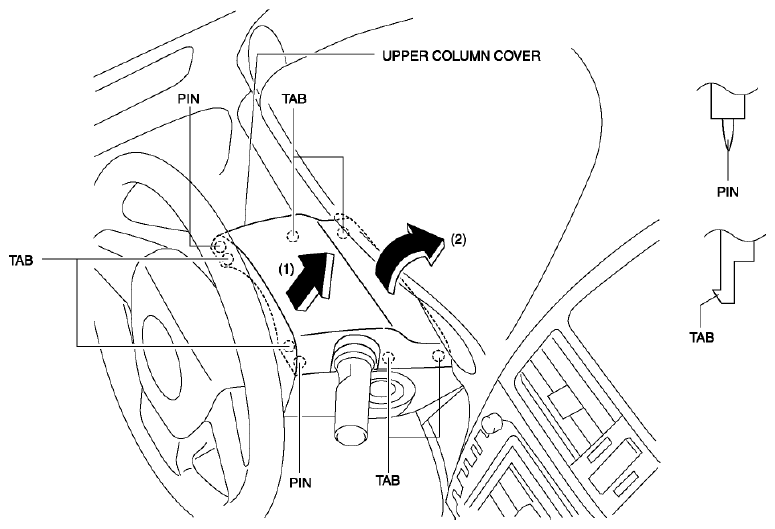

    Fig 1: Upper Column Cover Mounting Components
    G08144705
  4. Pull up the steering wheel.
  5. Remove the screws.
  6. Remove the lower column cover in the direction of the arrow (4) while keeping it open in the direction of the arrow (3) shown in the figure.

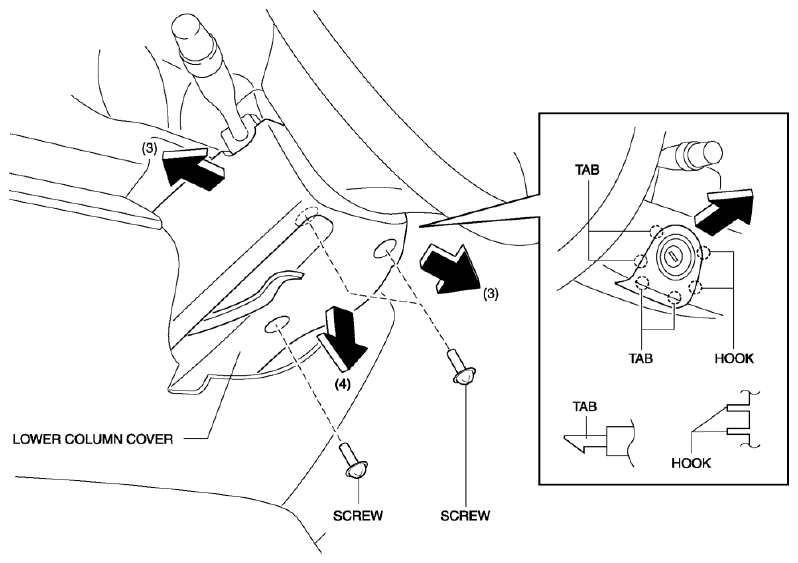

    Fig 2: Lower Column Cover Mounting Components
    G08144706
  7. Install in the reverse order of removal.
