Trunk Lid Latch Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the recess. (See RECESS REMOVAL/INSTALLATION .)
  3. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  4. Remove the trunk lid latch and lock actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION .)
  5. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

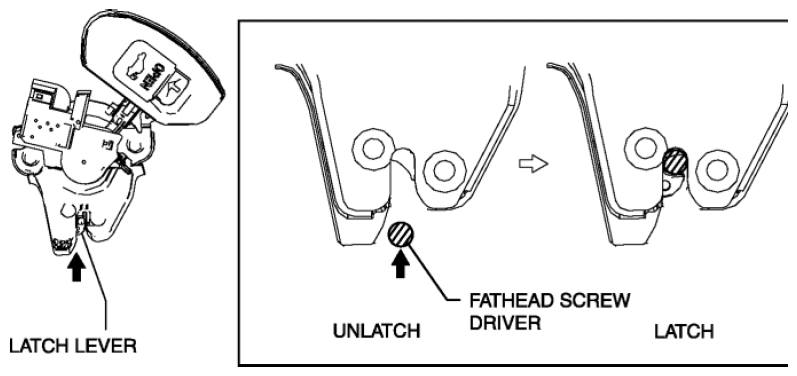

    Fig 1: Inspecting Latch Lever Condition
    G08144561
  6. Verify that the continuity is as indicated in the table.
    Fig 2: Identifying Trunk Lid Latch Switch Terminals
    G08144562
    • If not as indicated in the table, replace the trunk lid latch and lock actuator.

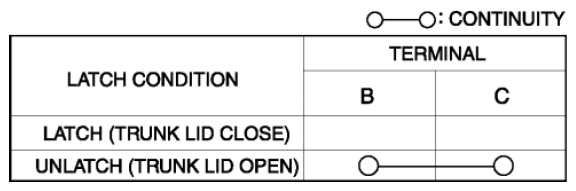

      Fig 3: Trunk Lid Latch Switch Terminals Continuity Chart
      G08144563
