Trunk Lid Latch Manual Release Procedure

NOTE:
  • If the trunk lid cannot be opened due to a discharged battery or malfunction in the electrical system, it can be opened using the following procedure.
  1. Open the cover.

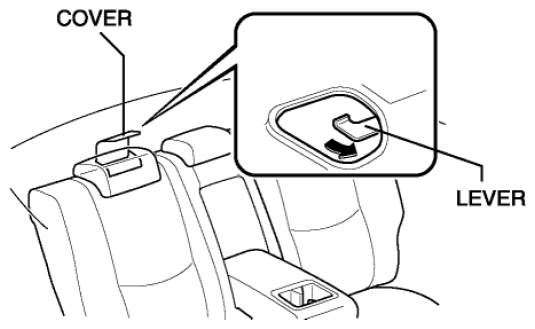

    Fig 1: Identifying Lever Pulling Direction
    G08144555
  2. Remove the cap and pull the lever in the direction of the arrow.
  3. Fold down the rear seat back.
    CAUTION:
    • Wear gloves when performing the procedure. The body edge can injure bare hands.
  4. Move the lever shown in the figure to the left to open the trunk lid.

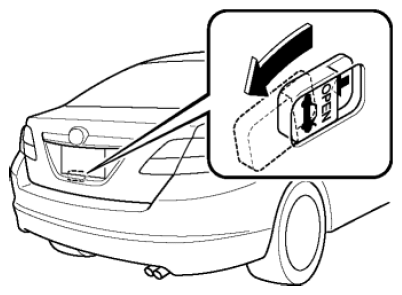

    Fig 2: Trunk Lid Lever
    G08144556
