Rear Outer Handle Removal/Installation

  1. Fully close the rear door glass.
  2. Disconnect the negative battery cable.
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the hole cover.

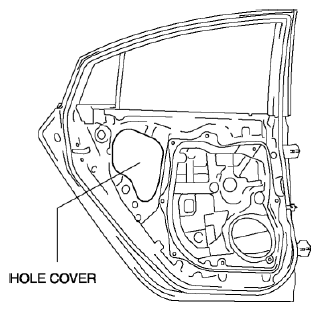

    Fig 1: Identifying Hole Cover
    G08144485
  5. Remove the service hole cover.

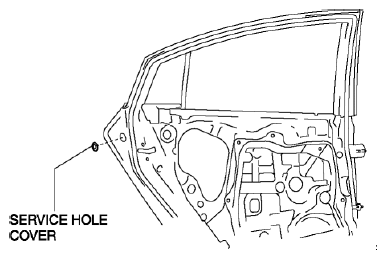

    Fig 2: Identifying Service Hole Cover
    G08144486
  6. Remove the screw from the service hole.

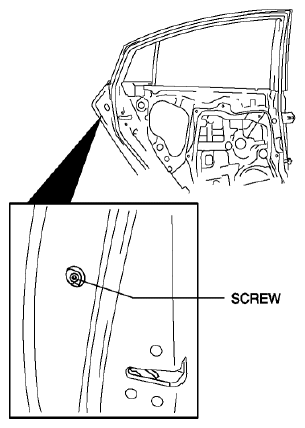

    Fig 3: Identifying Screw Through Service Hole
    G08144487
    NOTE:
    • The screw cannot be removed because of the stopper.
  7. Press the tab on the rear outer handle bracket in the direction of the arrow.

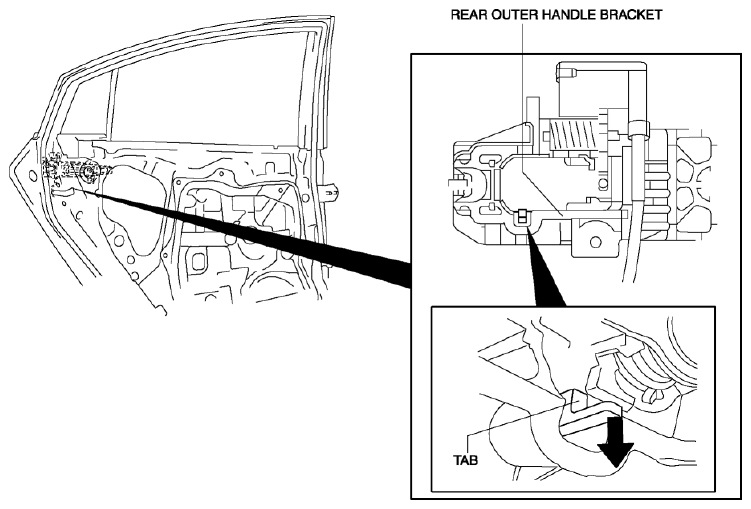

    Fig 4: Identifying Rear Outer Handle Bracket Tab
    G08144488
  8. Maintaining the condition in procedure 7, remove the outer handle garnish.
    Fig 5: Outer Handle Garnish
    G08144489
  9. Remove the rear outer handle.
    Fig 6: Rear Outer Handle
    G08144490
  10. Loosen the screw.

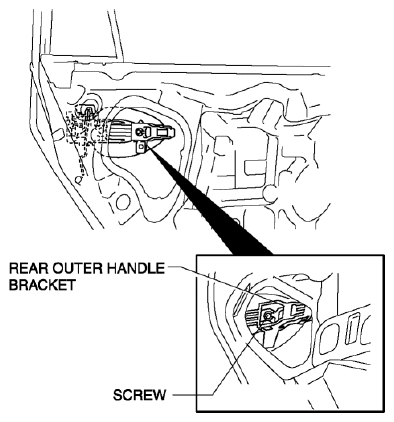

    Fig 7: Identifying Rear Outer Handle Bracket And Screw
    G08144491
  11. Press down the rod holder in the direction of arrow (1) and remove the rear outer handle bracket in the direction of arrow (2).

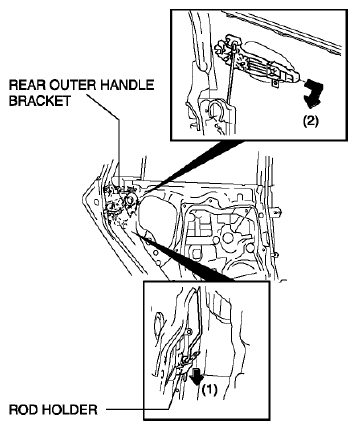

    Fig 8: Rod Holder And Rear Outer Handle Bracket Removal Procedure
    G08144492
  12. Install in the reverse order of removal.
