Hood Latch Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the hood latch. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  3. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

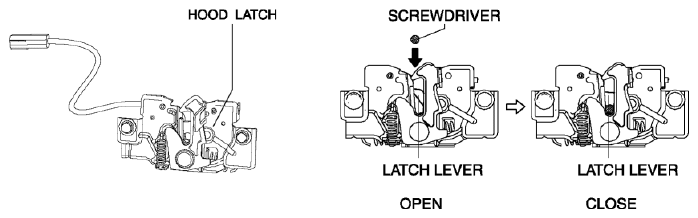

    Fig 1: Inspecting Latch Lever Condition
    G08144506
  4. Verify that the continuity is as indicated in the table.
    Fig 2: Identifying Hood Latch Switch
    G08144507
    • If not as indicated in the table, replace the hood latch.
      Fig 3: Hood Latch Switch Terminals Continuity Chart
      G08144508
