| DESCRIPTION |
Rain sensor/auto light sensor communication fault |
| DETECTION CONDITION |
Communication error to rain sensor/auto light sensor |
| POSSIBLE CAUSE |
- Connector or terminal malfunction

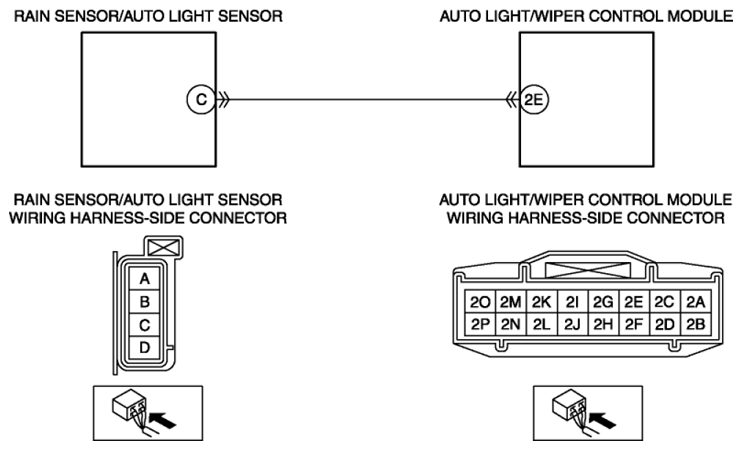

- Short to ground in wiring harness between auto light/wiper control module terminal 2E and rain sensor/auto light sensor terminal C
- Short to power supply in wiring harness between auto light/wiper control module terminal 2E and rain sensor/auto light sensor terminal C
- Open circuit in wiring harness between auto light/wiper control module terminal 2E and rain sensor/auto light sensor terminal C
- Rain sensor/auto light sensor malfunction
- Auto light/wiper control module malfunction
|
|
|
