Auto Light-Off Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the nut.

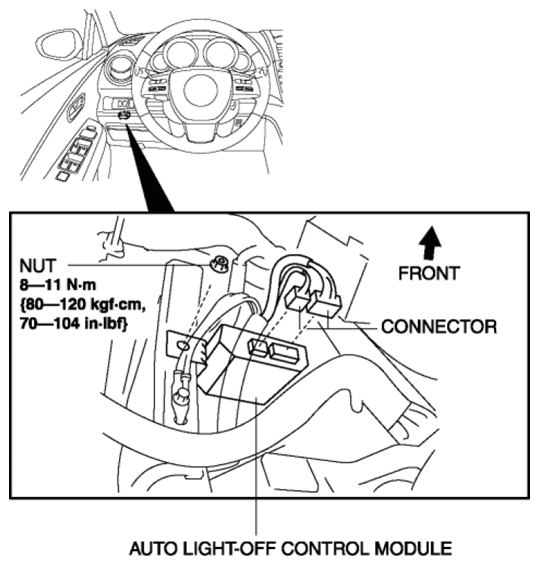

    Fig 1: Auto Light-Off Control Module Connectors And Nut With Torque Specification
    G08144871
  4. Disconnect the connectors.
  5. Remove the auto light-off control module.
  6. Install in the reverse order of removal.
