Front Door Speaker Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

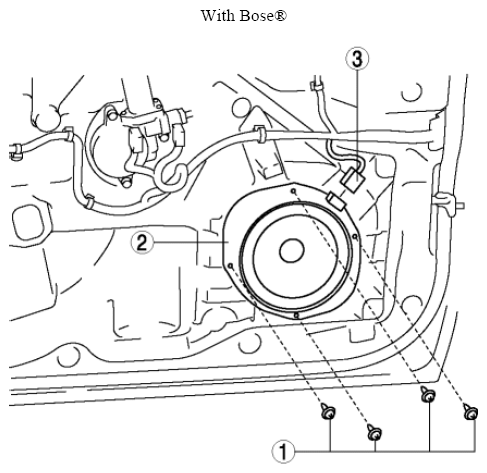

    Fig 1: Identifying Front Door Speaker, Screw And Connector (With Bose®)
    G08144946

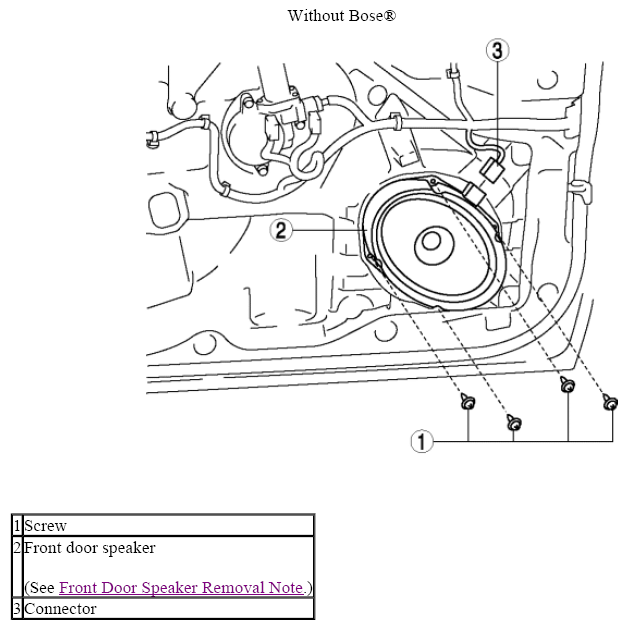

    Fig 2: Identifying Front Door Speaker, Screw And Connector (Without Bose®)
    G08144947
  5. Install in the reverse order of removal.
