AudioPilot®2 MICROPHONE REMOVAL/INSTALLATION

NOTE:
  • "AudioPilot®2" is a registered trademark of Bose® Corporation.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

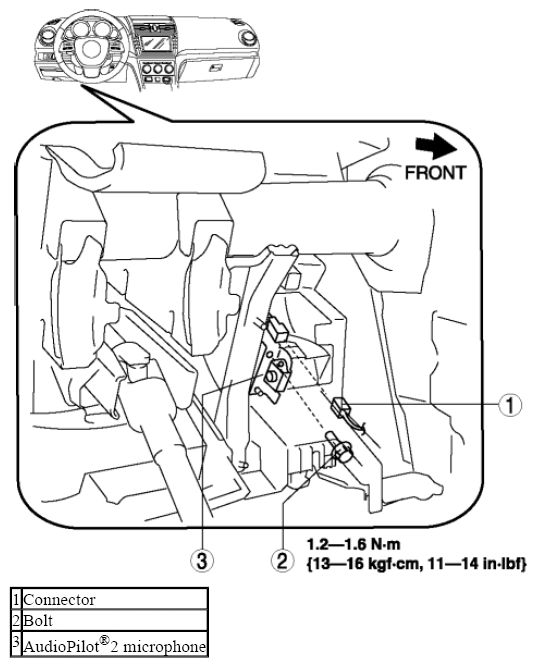

    Fig 1: AudioPilot(R)2 Microphone, Bolt And Connector With Torque Specification
    G08144970
  3. Install in the reverse order of removal.
