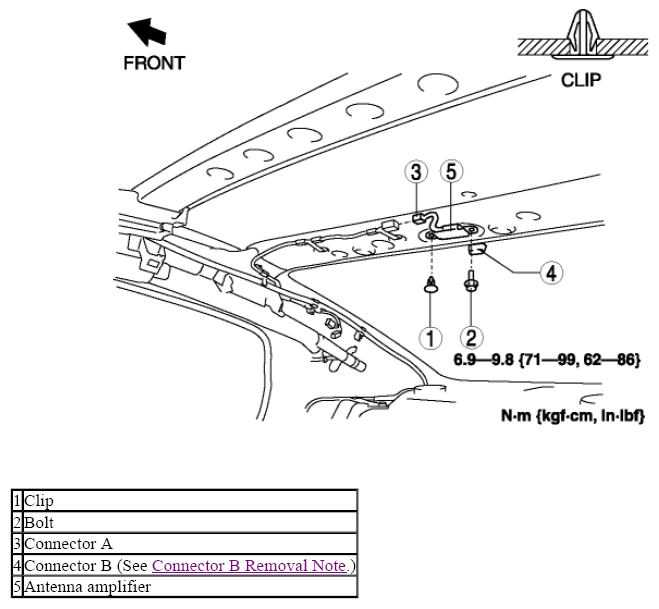

Antenna Amplifier Removal/Installation: Notes
- Disconnect the negative battery cable.
- Remove the rain sensor cover. (with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION .)
- Disconnect the rain sensor connector. (with auto light / wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION .)
- Disconnect the auto-dimming mirror connector. (with auto-dimming mirror) (See AUTO-DIMMING MIRROR REMOVAL .) (See AUTO-DIMMING MIRROR INSTALLATION .)
- Remove the following parts:
- Sunroof seaming welt (with sunroof system)
- A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
- Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
- Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
- Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
- Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .)
- C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
- Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
- Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
- Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
- Headliner (See HEADLINER REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
