Quick Diagnosis Chart

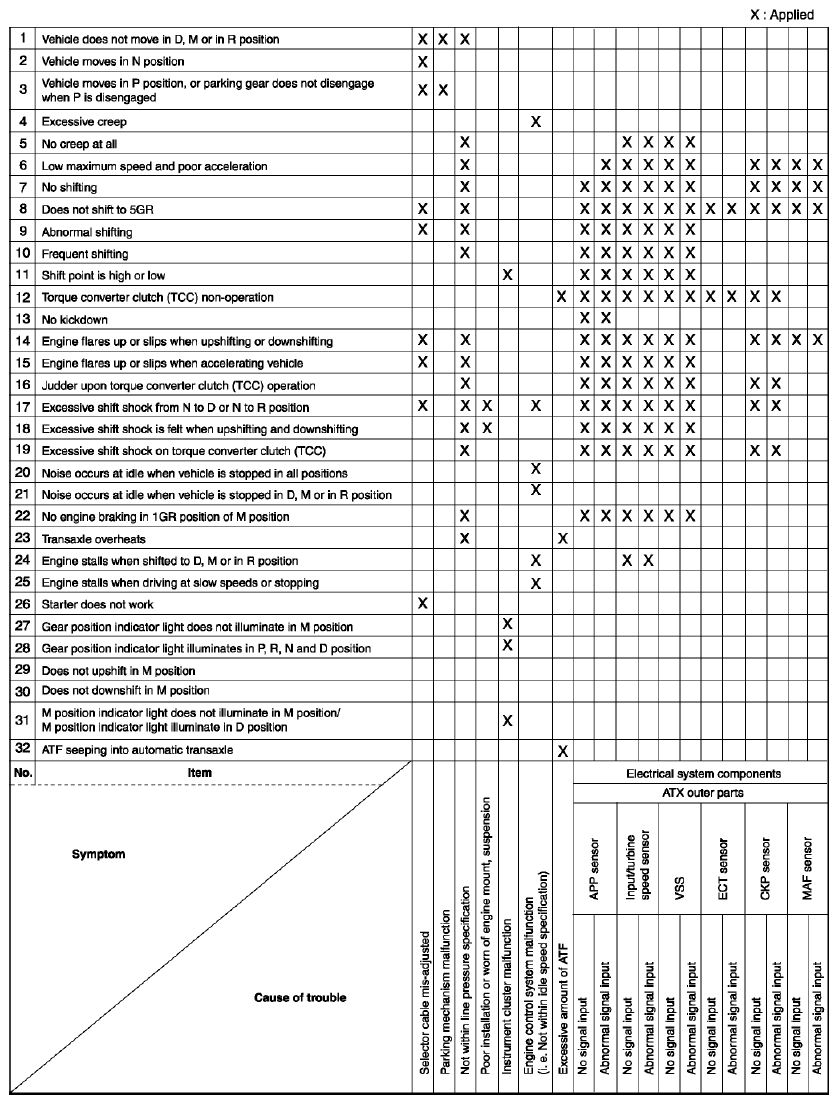

Fig 1: Quick Diagnosis Chart - FS5A-EL (1 Of 3)

G08142630

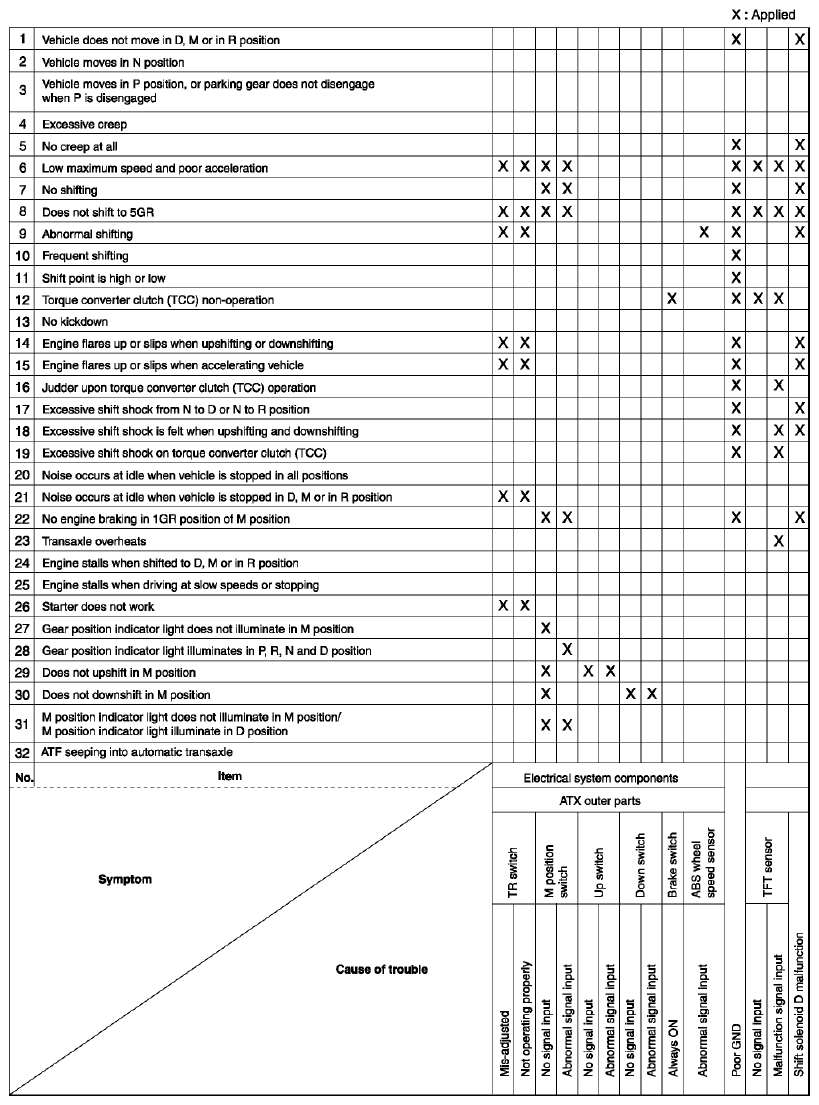

Fig 2: Quick Diagnosis Chart - FS5A-EL (2 Of 3)

G08142631

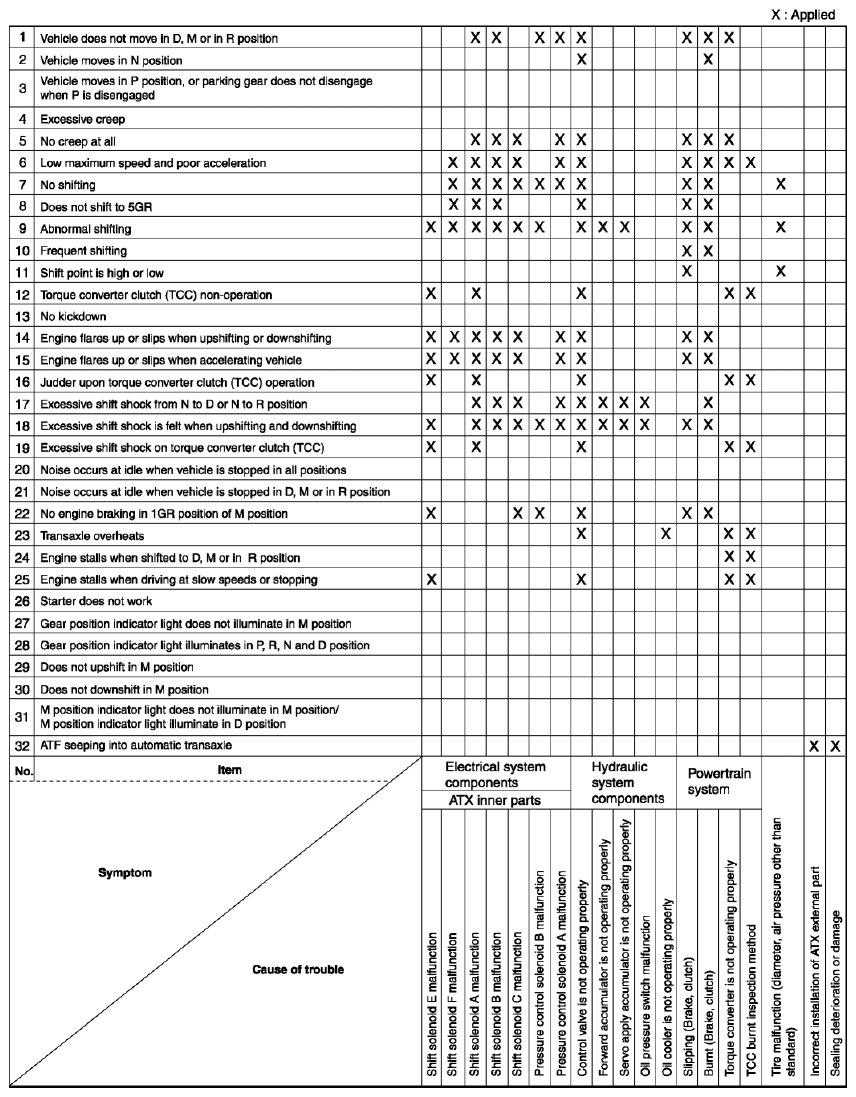

Fig 3: Quick Diagnosis Chart - FS5A-EL (3 Of 3)

G08142632
