Using the M-MDS

Connect the M-MDS (IDS) to the DLC-2.

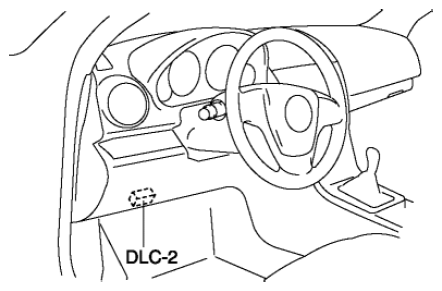

Fig 1: Identifying DLC-2
After the vehicle is identified, select the following items from the initialization screen of the IDS.
- When using the IDS (laptop PC)
  - Select "DataLogger".
  - Select "Modules".
  - Select "IC".

Verify that it is displayed according to the table using "SPDMTR".

If the speedometer does not move or the indication is not within the allowable range, inspect the related wiring harnesses.
- If the related wiring harnesses are normal, replace the instrument cluster.

M-MDS display	Instrument Cluster Display
60 km/h	Speedometer gauge needle moves to approx. 60 km/h {37 mph}
120 km/h	Speedometer gauge needle moves to approx. 120 km/h {75 mph}
Off	Speedometer gauge needle moves to 0 km/h {0 mph}
