Instrument Cluster Disassembly/Assembly

CAUTION:
  • Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.
  1. Perform the instrument cluster configuration when replacing it. (See INSTRUMENT CLUSTER CONFIGURATION .)
  2. Disconnect the negative battery cable.
  3. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
  4. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  5. Disassemble in the order indicated in the table.

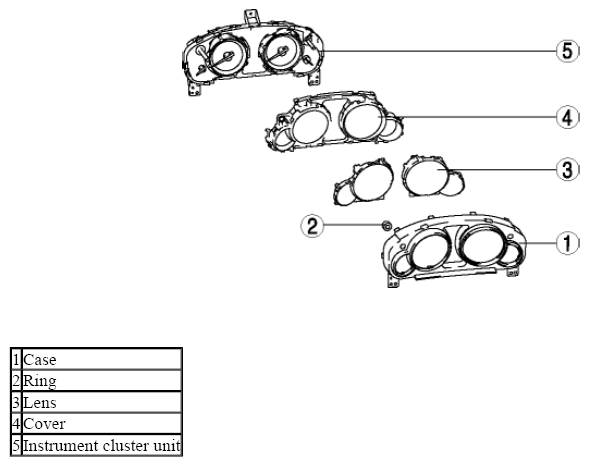

    Fig 1: Identifying Instrument Cluster Unit, Cover, Lens, Ring And Case
    G08145065
  6. Assemble in the reverse order of disassembly.
