Rearview Mirror Removal

  1. Remove the screw.

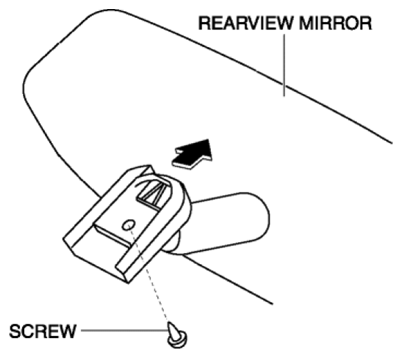

    Fig 1: Identifying Rearview Mirror Pulling Direction And Screw
    G08144392
  2. Pull out the rearview mirror in the direction of the arrow.
