Power Outer Mirror Switch Inspection
- Switch the ignition ON.
- Verify that the power outer mirror switch can be operated for approx. 43 s
after the ignition is switched off.
- If the power outer mirror cannot be operated for approx. 43 s
after the ignition is switched off, or if the power outer mirror can still be operated after approx. 43 s
, replace the power outer mirror switch.
- Disconnect the negative battery cable.
- Remove the inner garnish. (driver-side) (See INNER GARNISH REMOVAL/INSTALLATION
.)
- Remove the front door trim. (driver-side) (See FRONT DOOR TRIM REMOVAL/INSTALLATION
.)
- Remove the switch panel. (driver-side) (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY
.)

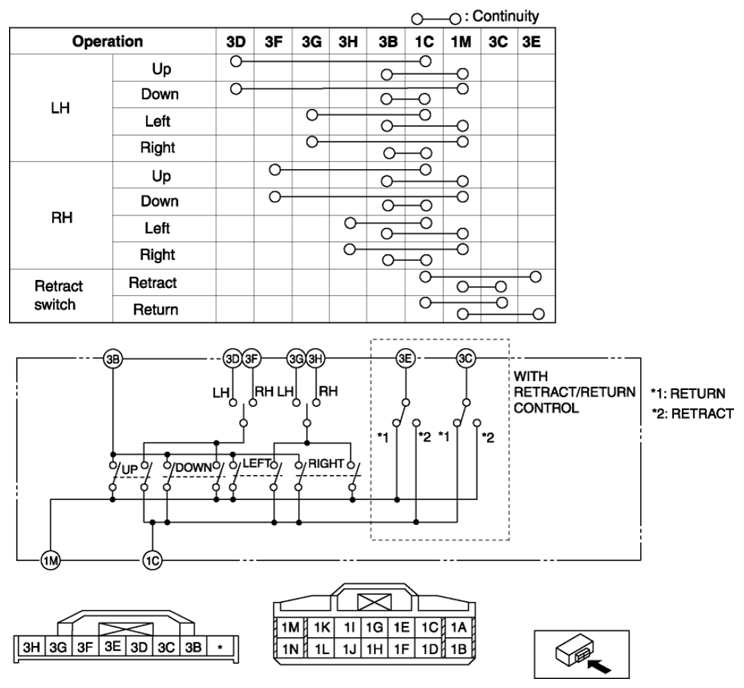

- Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table.
