Outer Mirror Glass Removal

  1. Disconnect the negative battery cable.
  2. Press area B of the mirror glass so that area A moves outward.

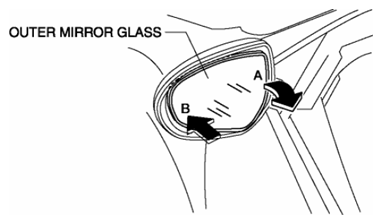

    Fig 1: Pressing Area B Of Outer Mirror Glass
    G08144376
  3. Detach tab while lifting up the inside of the mirror glass holder.

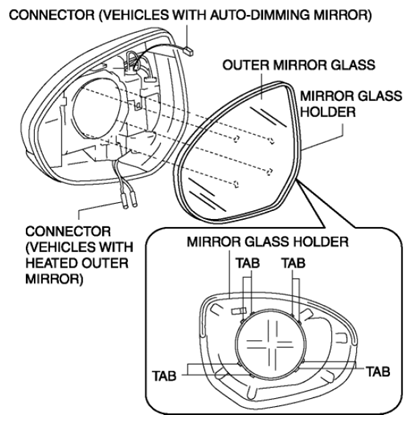

    Fig 2: Identifying Mirror Glass Holder Tabs And Mirror Heater Connectors
    G08144377
  4. Disconnect the mirror heater connectors. (vehicles with heated outer mirror)
  5. Disconnect the auto-dimming mirror connectors. (vehicles with auto-dimming mirror)
  6. Insert a tape-wrapped flathead screwdriver to the position shown in the figure, remove the connector. (vehicles with BSM)
    CAUTION:
    • The connector can be easily deformed, therefore do not apply excessive force.

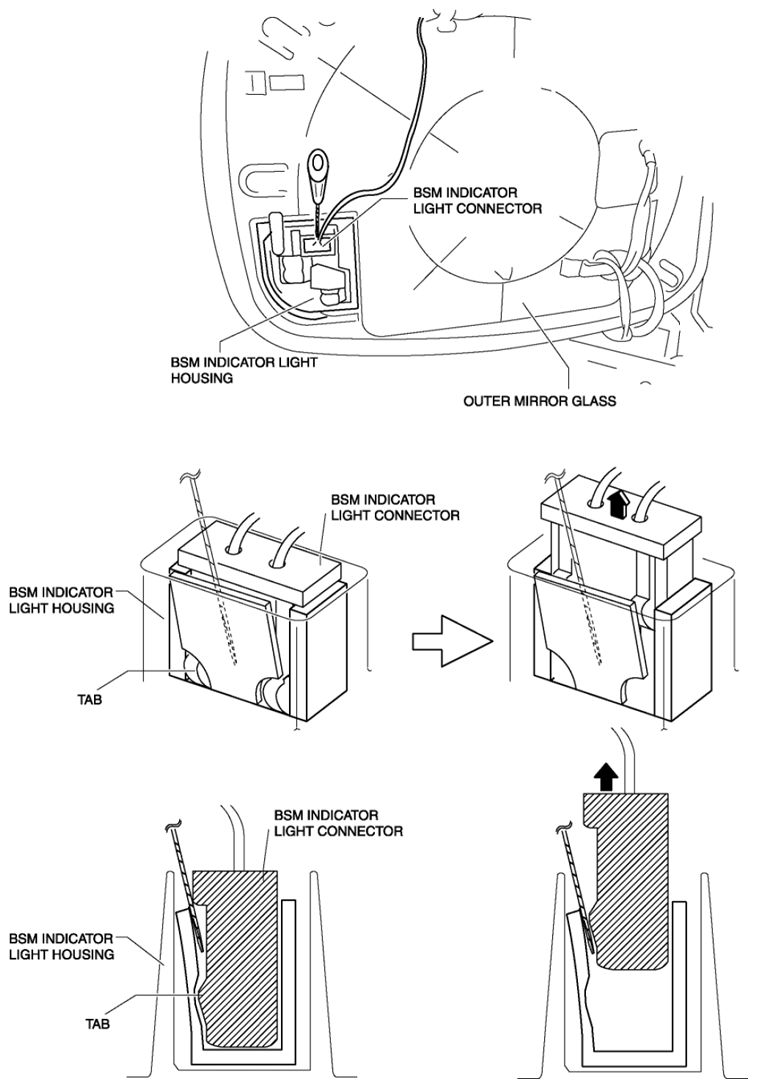

      Fig 3: BSM Indicator Light Connector (Vehicles With BSM)
      G08144378
  7. Remove the mirror glass holder and the outer mirror glass as a single unit.
