Slide Motor Inspection

  1. Disconnect the slide motor connector.
  2. Apply battery positive voltage to the slide motor terminals and inspect the slide motor operation.

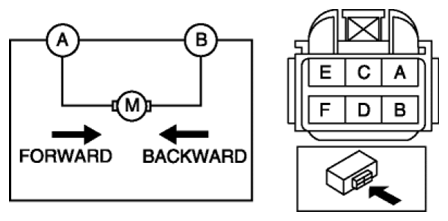

    Fig 1: Identifying Slide Motor Terminals
    G08144451
    Motor operation Connection
    B+ GND
    Forward A B
    Backward B A
