TR Switch Installation Note

Verify that the manual shaft is aligned with N position.

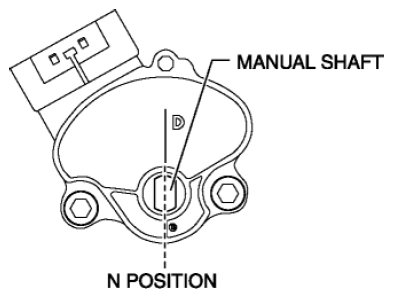

Fig 1: Aligning Manual Shaft With N Position
Adjust the TR switch between terminals B and C until the resistance becomes 713-787 ohms .

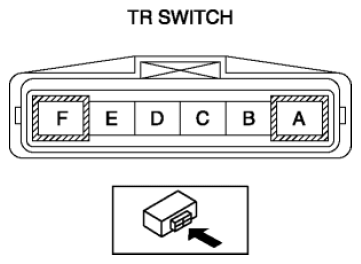

Fig 2: Identifying TR Switch Connector Terminals
Tighten the TR switch installation bolts.
Tightening torque
- 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
