Transaxle Range (Tr) Switch Removal/Installation: Notes
CAUTION:
- Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
- Engage the parking brake and use wheel chocks at the front and rear of the wheels.
- Shift the selector lever to N position.
- Disconnect the negative battery cable.
- Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the aerodynamic under cover NO.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION .)

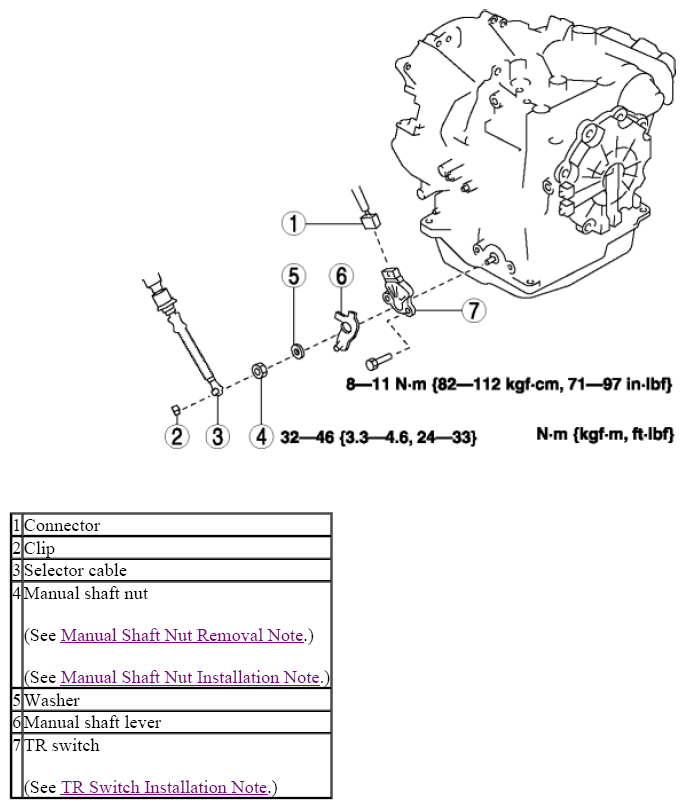

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the TR switch. (See TRANSAXLE RANGE (TR) SWITCH INSPECTION .)
