Input/Output Wave From (Reference): VSS

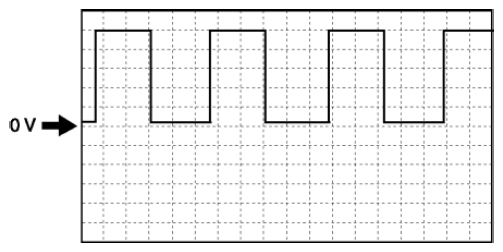

Fig 1: Input/Turbine Speed Sensor Waveform - VSS

TCM terminals
2P (+)-body GND (-)
Oscilloscope setting
1 V/DIV (Y), 2 ms/DIV (X), DC range
Test Condition
The following conditions are met:
- Vehicle speed: 30 km/h {19 mph}
- Gear position: 3GR
