TCM Inspection
>>
Input/Output Wave From (Reference)
>>
Input/turbine speed sensor
Input/turbine speed sensor

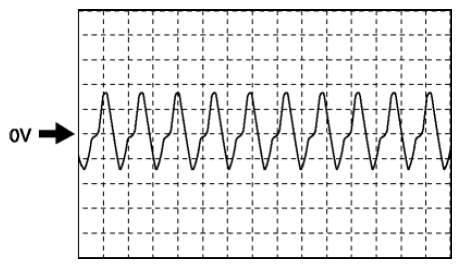

Fig 1: Input/Turbine Speed Sensor Waveform
TCM terminals
2I (+)-2K (-)
Oscilloscope setting
1 V/DIV (Y), 2 ms/DIV (X), DC range
Test Condition
Idle at P position after warm-up
