Off-Vehicle Inspection

Measure the resistance between input/turbine speed sensor terminals A and B.

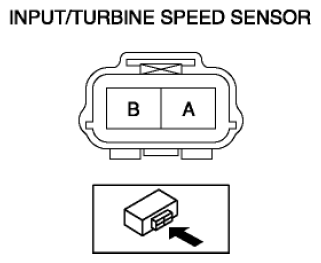

Fig 1: Identifying Input/Turbine Speed Sensor Connector Terminals
- If there is any malfunction, replace the input/turbine speed sensor.
  Input/turbine speed sensor specification
- 250-600 ohms
