Drive Plate Removal/Installation: Notes

  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal

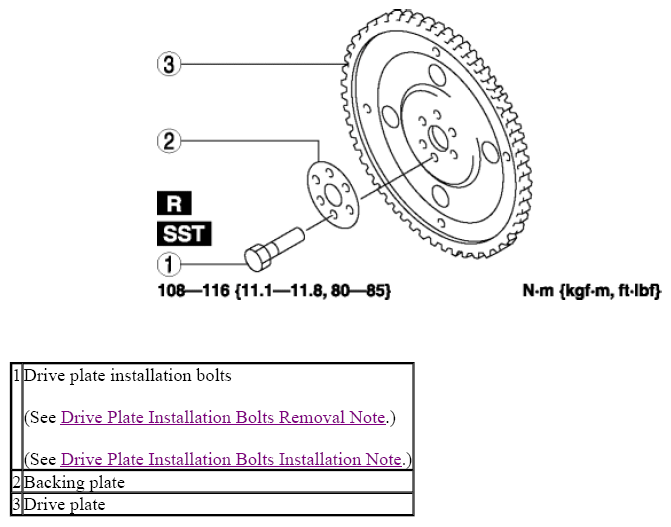

    Fig 1: Drive Plate Installation Bolts, Backing Plate And Drive Plate With Torque Specification
    G08142805
