Transaxle Removal Note

  1. Adjust the SST (49 C017 5A0)  and lean the engine toward the transaxle.

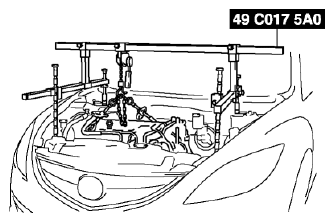

    Fig 1: Leaning Engine Toward Transaxle Using SST
    G08142797
  2. Support the transaxle on a jack.
    Fig 2: Supporting Transaxle On Jack
    G08142798
  3. Remove the transaxle mounting bolts.
  4. Remove the transaxle.
