Transaxle Installation Note
CAUTION:
- Verify that the torque converter stud bolts are inserted into the drive plate bolt holes, and install the transaxle installation bolts. Otherwise, the drive plate could be damaged.

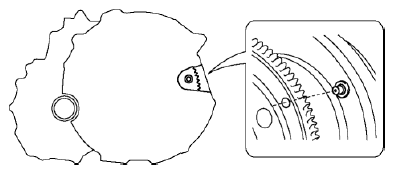

- Verify that the torque converter stud bolts are inserted into the drive plate bolt holes from the starter installation hole.
- Tighten the transaxle mounting bolts.
Tightening torque
- 38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
