No.4 Engine Mount Installation Note

Tighten nuts on the No.4 engine mount bracket in the order of A to C.

Fig 1: Identifying No.4 Engine Mount Bracket Nuts And Bolts

Tightening torque
- 67-93 N.m {6.9-9.4 kgf.m, 50-68 ft.lbf}
Tighten the new bolts on the No.4 engine mount rubber.

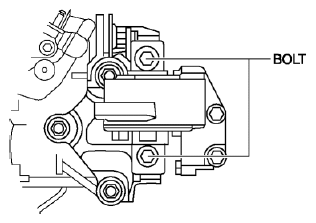

Fig 2: Identifying No.4 Engine Mount Rubber Bolts

Tightening torque
- 77-103 N.m {7.9-10 kgf.m, 57-75 ft.lbf}
