Damper Fork Installation Note

Check the identification mark to verify if the part is for the left or right side

Fig 1: Identifying Damper Fork Identification Mark
Set the front shock absorber bracket against the damper fork.

Fig 2: Identifying Front Shock Absorber Bracket
Install the bolt aligned with the front shock absorber notch.

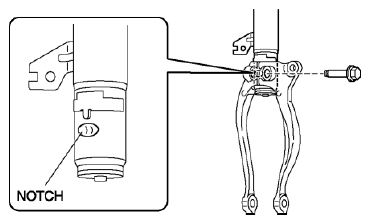

Fig 3: Identifying Bolt And Front Shock Absorber Notch
Tighten the bolt to the specified torque and install the damper fork.
